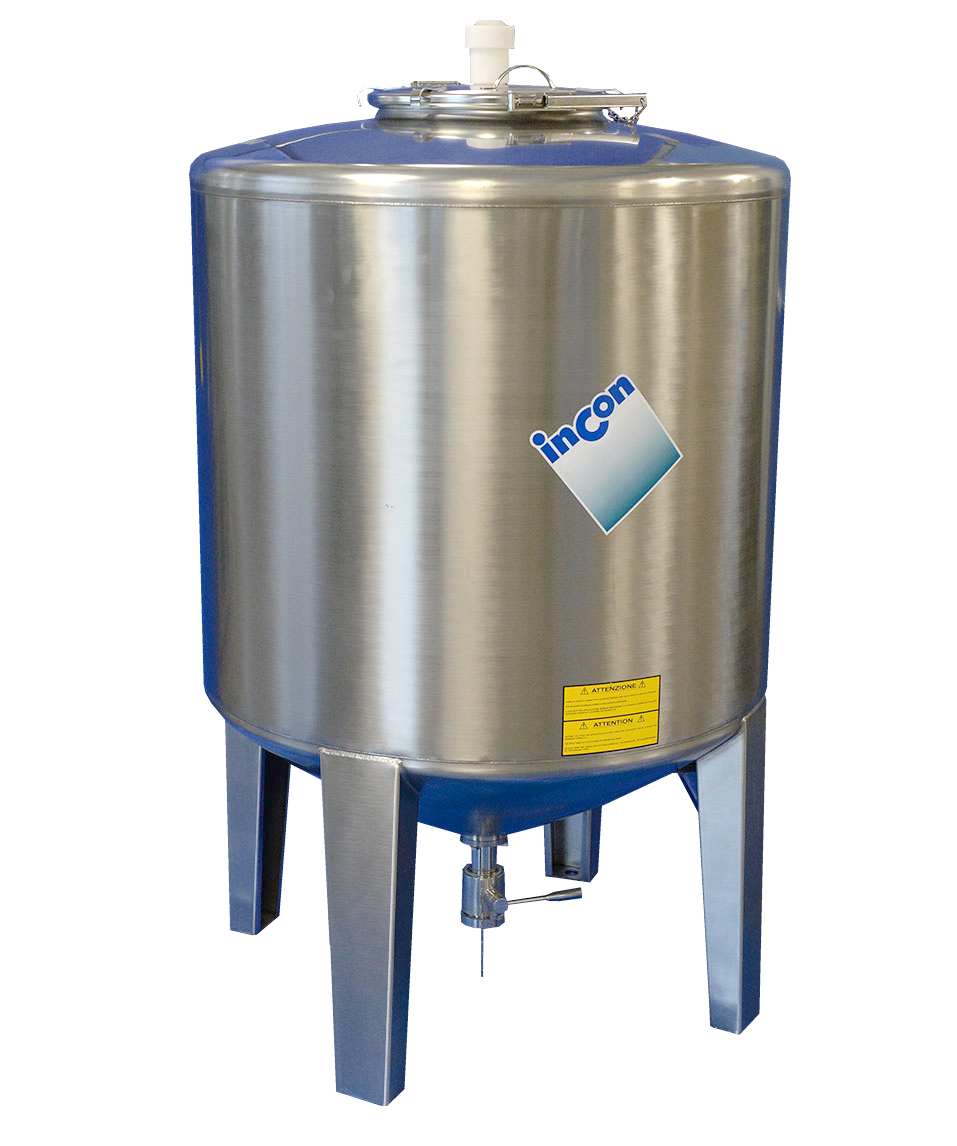

MTFC 1000 Stainless Steel Conical Tank - with wide dimensions axial discharge outlet, with welded legs. Suitable for transport and storing of high viscous products.
Stainless Steel cold rolled AISI 304 (316 on request). External satin polished, internal BA Polished. With cold-forged bottom cover with optimised shape, minimum thickness of 2 mm.
Technical Features:

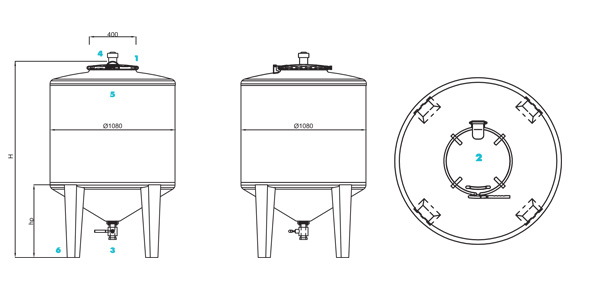

Capacity: 992 litres
Height (with legs): 1700mm
Pressure relief valve: 2inch
Robotised TIG welding process. Pickled and passivated seams. Bath galvanised, stainless steel palletised base (painted on request). Stainless steel ring welded to the tank and screwed to the base. On request: available in steel inox AISI304.
Accessories available at extra cost option on request. Range of "quick release" fittings or nipples. Stirrers, washing systems, etc. Level gauges. Insulation and heating plates. Dimensional changes within main footprint and customised equipment to meet most requirements.
Delivery Option:- Standard 21 working day service via haulage contractor.
